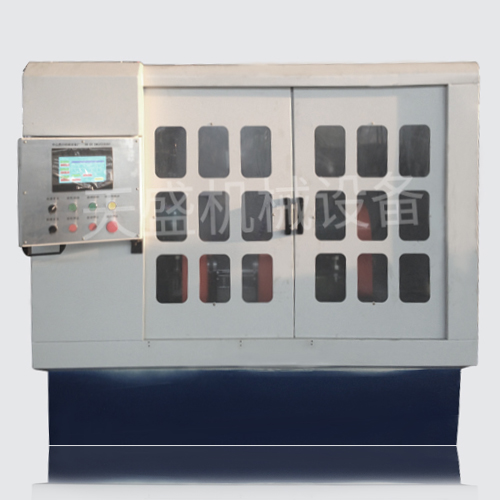

Disk diameter

Within MAX 50mm

Rod diameter

φ5～9㎜

Length

80～180㎜

Material

21-4N+4Cr10Si2Mo

Import: SUH: 3, SUH: 35, etc.

Hardness

30—60HRc

Rod beat

0.01㎜

Disk beat

0.1㎜

Verticality

MAX 0.03mm continuous machining and measuring 50 pieces

Dedicated Gage

Dimensional accuracy

±0.035mm continuous processing and measuring 50 pieces

Special inspection tool + vernier caliper

Processing efficiency (beat)

With machining allowance 6.2 as standard 7s/pcs

bed frame

It is cast from high-strength cast iron and then annealed to prevent deformation. The symmetrical structure design greatly improves the rigidity, vibration resistance and thermal deformation resistance of the bed.

1 set

Grinding wheel

Main motor

Jin Fuling three-phase asynchronous motor 2.2KW (380V/50Hz) Y90L-2 (IP54) (customer can specify the brand)

1 set

Drive high speed wide angle belt

8PL920 cushioning, vibration absorption, stable operation, low noise

Wheel spindle

Grinding wheel spindle: Angular contact bearing with mounting spindle (7000RPM), introduced in Taiwan.

Grinding wheel

Bronze sintering, imported from Japan, or CBN plating (domestic), no need to trim

1. Grinding wheel service life: with the processing rod diameter of 6.2mm as the standard, importing more than 150,000 pieces/piece, domestic electroplating 4-50000

2. Spindle service life: above 30000Hr, no loss of precision

Grinding wheel specifications

210×90×1.2㎜

Wheel speed

120m/s

Feed

Feed screw

Taiwan silver ball screw

Market standard parts configuration, smooth sliding resistance, high sensitivity, low noise; repeat positioning accuracy: 0.01mm

1 set

Feed rail

Taiwan silver roller linear guide

Feed drive

Huichuan servo + motor (customer can specify brand)

lubricating

The main shaft adopts sealed self-lubricating and must be filled with high-temperature grease; the feed is automatic lubrication oil pump, fixed point, timed and quantitative automatic lubrication. When the automatic oil filling pump is out of oil, the automatic operation stops, the alarm flashes promptly, and the refueling is forced.

1 set

Control System

Control System

Huichuan Programmable Controller (PLC)

1. The electrical part should have certain moisture and dustproof measures to adapt to the environment of 70% humidity work site in summer.

2. There are total accumulated numbers on the operation panel, the cumulative number of shifts, the clearing, and the production timing function.

3. The machine has a computer RS232 interface, with alarm signals, counting alarms and fault alarms.

4. The device is clearly positioned as a three-color signal light.

1 set

server system

Huichuan servo

touch screen

Huichuan 7-inch screen

Air pressure configuration

Taiwan Gold

sensor

Autonics

Safety

Connect the switch, open the door and stop

Auxiliary

cool down

50L/min. High-pressure pump auxiliary and one-way valve control supply quickly, cold-worked workpiece and grinding wheel clearance

1 set

Protection

Fully enclosed protective cover, grinding wheel shield spoiler

1 set

Environmental protection

Oil mist collector, powder centrifuge, filter water tank

1 set

Feed

Pneumatic automatic feeding, product spacing does not collide

1 set

Discharge

Free-style automatic discharge, product spacing does not collide

1 set

use

 Three-phase five-wire system 380V/50Hz, air pressure: 0.4~0.6MPa

Total power

3.5kw（380V/50Hz）

Machine dimensions

1490×1650×1580㎜

Machine weight

1500㎏
